Under the microscope: Instruments of Chaos

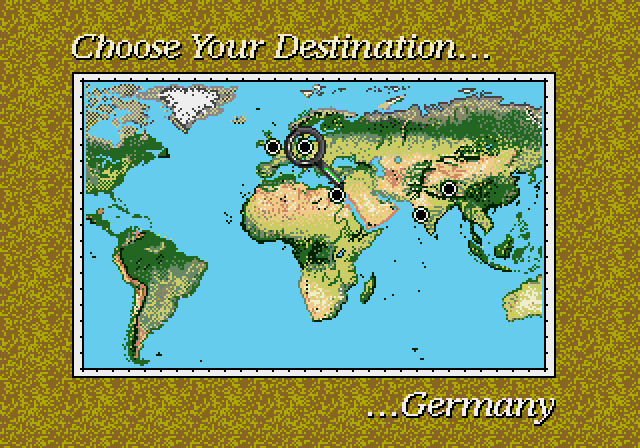

What is Instruments of Chaos Starring Young Indiana Jones, a single-player game, doing checking for input from Controller 2? That’s what I wondered when I saw this code, which runs after you make a selection on the map screen…

check_stage_4:
    ; Check if Germany was selected.
    cmpi.w #0x4,D0w
    ; If it wasn't, skip down to the check for England.
    bne.w check_stage_1
    ; If it was, check to see whether A is being held down on Controller 2.
    btst.b #0x6,(p2_held_fffffce2).w
    ; If it is, launch Germany.
    bne.b launch_stage_4
    ; If it wasn't, load the "all clear" progress value, 0x35.
    move.b #0x35,D0b
    ; Compare the saved progress to the "all clear" progress value.
    cmp.b (progress_fffffd42).l,D0b
    ; If there's a match, launch Germany.
    beq.b launch_stage_4
    ; If there's no match, store the "not yet" message ID.
    move.w #0x7,(message_id_fffff33e).l

Let’s break that down…

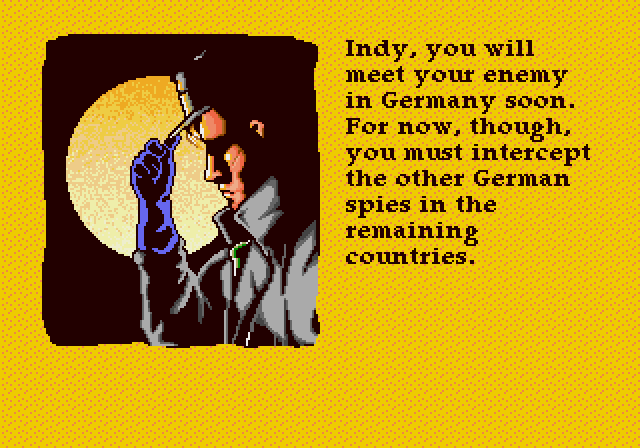

Normally, if you select Germany without having completed the other missions, you get a message telling you that you can’t go there yet.

But if the memory address that stores your progress (fffffd42) has the value 0x35, the logical OR of the values for Egypt (0x10); India (0x20); England (0x01); and Tibet (0x04), you are allowed into Berlin.

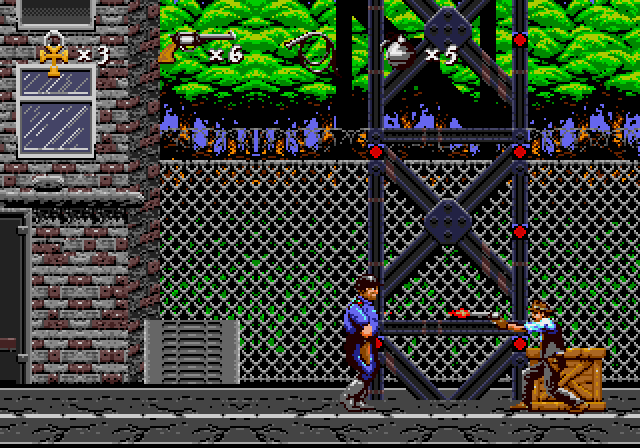

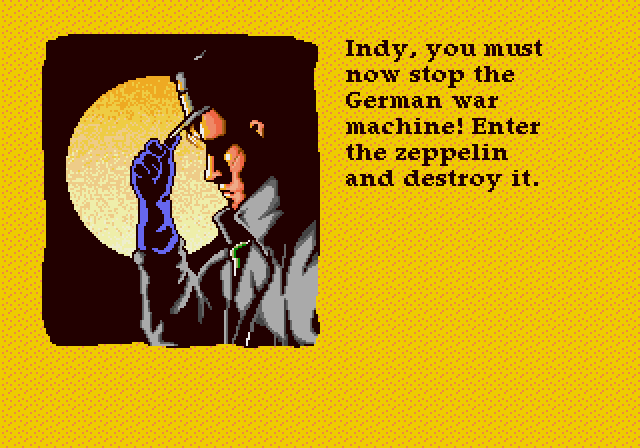

However, if you hold A on controller 2 while selecting Germany, the progress check is skipped. You can start playing that mission right away.

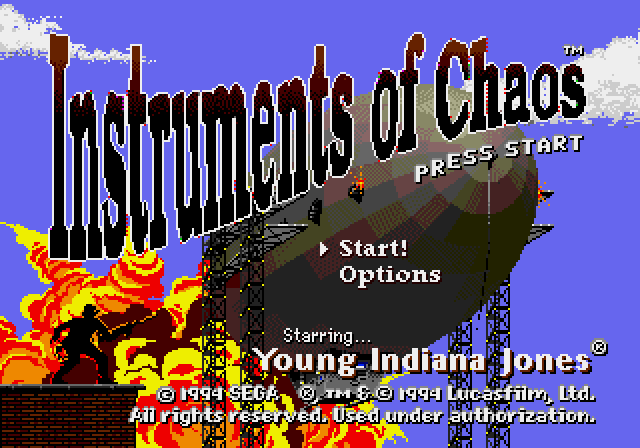

That’s not the only secret in this game. Here’s some code that runs on the main menu screen:

check_cheat:
    ; Load Controller 1's currently-held buttons.
    move.b     (p1_held_fffffcdf).w,D0b
    ; If no buttons are being pressed, skip ahead.
    beq.b      main_menu_controls
    ; Load the cheat sequence.
    lea        (cheat_buttons_00031d26).l,A0
    ; Load the index of the next button in the sequence.
    clr.w      D1w
    move.b     (cheat_counter_fffffd2d).w,D1b
    ; Check whether the controller button matches the target.
    cmp.b      (0x0,A0,D1w*0x1)=>cheat_buttons_00031d26
    ; If it doesn't, reset the progress counter.
    bne.b      reset_cheat
    ; If it does, increment the progress counter.
    addq.w     #0x1,D1w
    move.b     D1b,(cheat_counter_fffffd2d).w
    ; The end of the sequence is signaled by a zero value.
    move.b     (0x0,A0,D1w*0x1)=>cheat_buttons_00031d26
    ; If we haven't reached that, skip ahead.
    bne.b      main_menu_controls
    ; If we have reached the end, play a sound effect.
    moveq      #0x50,D0
    move.l     D0,-(SP)=>local_4
    jsr        play_sfx_0000b81c.l
    addq.l     #0x4,SP
    ; And set the cheat indicator.
    move.b     #0x1,(cheat_effect_fffffd2e).w

It’s a cheat code detector! It’s looking for this sequence of buttons from controller 1: Up, A, Down, B, Left, C, Right, A.

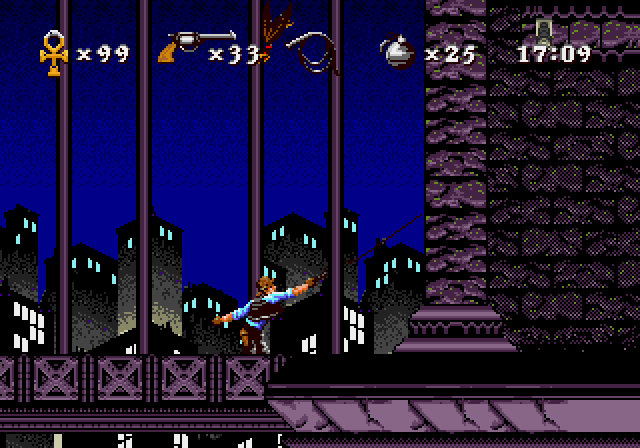

Enter that correctly, and you’ll hear a sound effect. When you start playing a stage, you’ll find that you have 99 lives and more weapons and ammunition than normal.

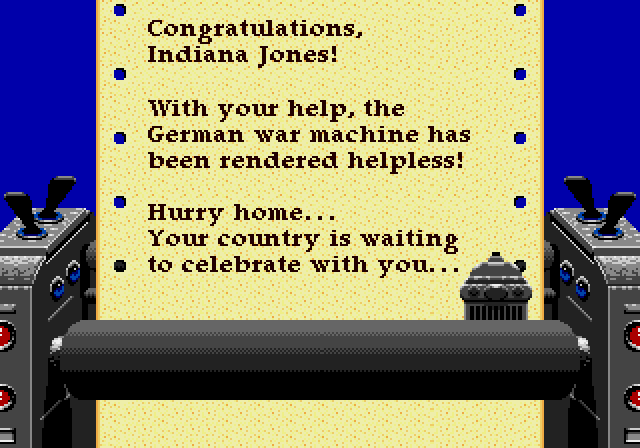

Furthermore, you can skip to the next scene by pressing A on controller 2. If you do this in the Germany mission, you will see the ending scene and credits.

This game is fiendishly difficult, so the cheat effects are really helpful.

---
